NSN 5905-00-240-3015

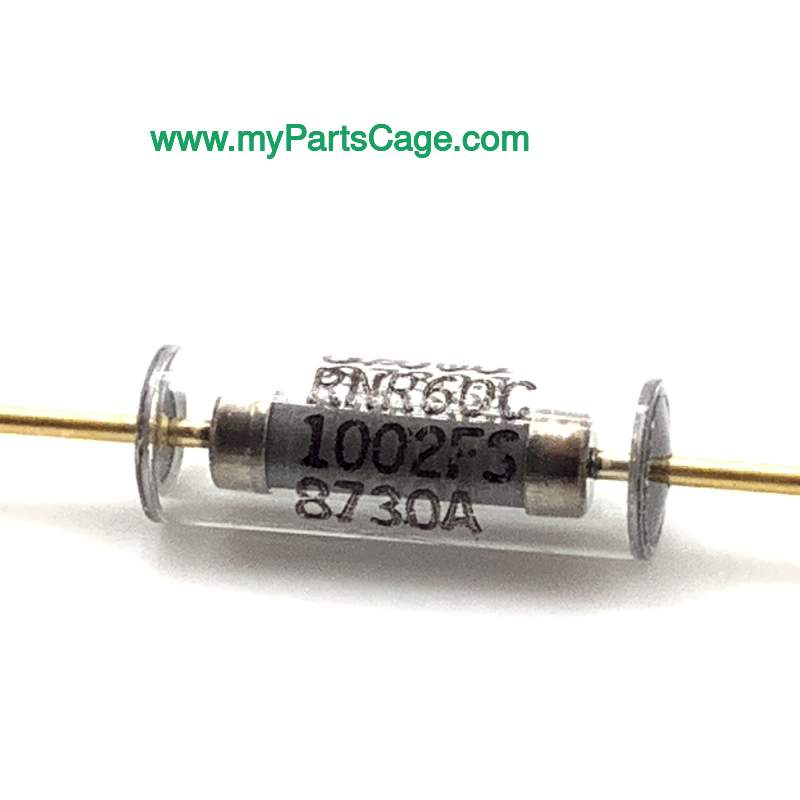

Metallized Film Fixed Resistor
10.000 kilohms electrical resistance, -1.000/+1.000 resistance tolerance in percent, hermetically sealed inclosure method, terminal type: wire lead.
Manufacturer part number RNC60C1002F for national stock number 5905002403015.
Datasheet
-
Product description
Film Fixed Resistor NSN 5905-00-240-3015.
-
MPN or Model
RNC60C1002F
-
Schedule B
8533.10.0042 (Fixed carbon resistors, composition or film type, designed for surface mounting, having two terminals) -
NMF (National Motor Freight)
062960 - Reostats/parts NOI -
Unit Weight (Est.)
0.1 lb -
Tempurature Coefficient Of Resistance In Ppm Per Deg Celsius
-50.0/+50.0 -
Electrical Resistance
10.000 kilohms -
Resistance Tolerance In Percent
-1.000/+1.000 -
Ambient Tempurature In Deg Celsius At Full Rated Power
125.0 -
Ambient Tempurature In Deg Celsius At Zero Percent Rated Power
175.0 -
Tempurature Range Of Tempurature Coefficient In Deg Celsius
-55.0/+175.0 -
Inclosure Method
Hermetically sealed -
Terminal Type
Wire lead -
Reliability Indicator
Established -
Reliability Failure Rate Level In Percent
0.001 -
Body Diameter
0.125 inches -
Body Length
0.375 inches -
Power Dissipation Rating In Watts
0.125 free air -
Style Designator
Axial terminal each end -
Test Data Document
81349-milr55182 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
More from these suppliers
- 5905-00-834-9113 MPN CDH1-2P90KOHMSPORM1-2PCTFilm Fixed Resistor
- 5905-00-960-7404 MPN CD1-2MR3-4MEG1PCTFilm Fixed Resistor
- 5905-01-057-0742 MPN CD2R30KOHMPORM1PCTFilm Fixed Resistor
- 5905-00-925-3566 MPN CD1-4R1213FFilm Fixed Resistor
- 5905-00-233-7104 MPN 100E1002BFilm Fixed Resistor
- 5935-01-361-8758 MPN C9-314-02Plug-in Electronic Components Socket
- 5935-01-361-8758 MPN C9-314-13Plug-in Electronic Components Socket
- 5985-00-040-2934 MPN 611406Waveguide Support
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also attenuator, fixed and resistor, fixed, composition. Excludes carbon composition type resistors.
Pricing and Availability
Get a quote for 5905-00-240-3015 film fixed resistorManufacturer Part Numbers and Alternates
MPN manufacturer part number | Registrant or Supplier |
---|---|
RNC60C1002F | Military Specifications |
RNR60C1002FM | Military Specifications |
RNR600C1002FS | Military Specifications |
RNR60B1002FS | Military Specifications |
RNR60C1002F | Military Specifications |
RNC60C1002FM | Military Specifications |
RNR60C1002FS | Military Specifications |
MIL-R-55182/3 | Military Specifications |
BACR1B100 | The Boeing Company |
373092-224 | Raytheon Company |
CG1-4 103F | Texas Instruments Incorporated |
RNR60C1002FP | Cooper Industries Inc |
NA60-10K1PCT | Avx Corp |
10532607 | Global Associates Ltd |
1637729-103 | Navair And Navsea Managed |
531511-289 | Raytheon Company |
443-0601-004 | Boeing Company, The |
CG1-4 103F | Raytheon Company |
R170H1002F | Mepco/electra Inc |
50002-222 | Philippine Rattan Inc. |
10394481 | Nimikkeistokeskus Ncb Finland |
MIL-PRF-55182/3 | Military Specifications |
