NSN 5930-00-058-3755

Datasheet

• Product description

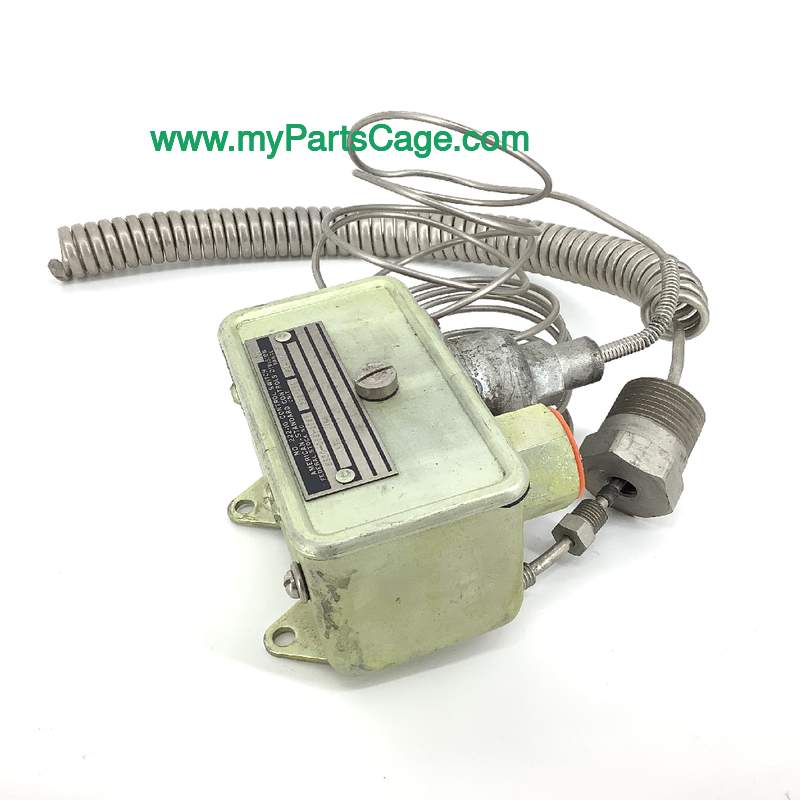

  Thermostatic Switch NSN 5930-00-058-3755.

• MPN or Model


  222-10NNM2221019

• Schedule B
  9032.10.0000 (Thermostats)
• NMF (National Motor Freight)
  061300 - Circuit Breaker/switch NOI
• Unit Weight (Est.)
  7.6 lb
• Hazardous Locations/environmental Protection
  Dustproof and vibration resistant and watertight
• Overall Length
  5.188 inches
• Overall Height
  5.687 inches
• Overall Width
  2.812 inches
• Body Height
  2.750 inches
• Unthreaded Mounting Hole Diameter
  0.281 inches
• Capillary Tube Length
  120.0 inches
• Bulb Length
  13.750 inches
• Bulb Diameter
  1.125 inches
• Longest Horizontal Distance Between Mounting Centers
  2.406 inches
• Shortest Horizontal Distance Between Mounting Centers
  0.656 inches
• Longest Vertical Distance Between Mounting Centers
  3.281 inches
• Tempurature Sensing Element Type
  Capillary tube-bulb
• Operating Tempurature Rating
  Between -273.1 degrees celsius and 145.0 degrees fahrenheit
• Mounting Method
  Bracket and unthreaded hole
• Features Provided
  Electrical access port
• Contact Action Stimulus
  Increase
• Mounting Facility Pattern
  Isosceles triangle
• Nonpile-up Contact Arrangement
  1 pole, single throw, normally closed, momentary action
• Terminal Type
  Screw
• Contact Load Current Rating
  9.6 amperes inductive load fifth voltage
• Contact Adjustability
  Actuation point adjustable
• Contact Adjustment Range
  +45.00 to 115.00 actuation point degrees fahrenheit
• Contact Adjustment Type
  External actuation point screw
• Contact Voltage Rating In Volts
  550.0 dc at sea level eighth voltage
• Media For Which Designed
  Gas or liquid
• Precious Material And Location
  Contacts silver
• Precious Material
  Silver
• Style Designator
  Rectangular
