NSN 5930-00-538-1673

Push Button Switch

About this product

Bushing mounted body style, metal case material, 230.0 ac and 24.0 dc maximum voltage rating in volts, inclosure type: fully enclosed.

Manufacturer part number C41008 for national stock number 5930005381673.

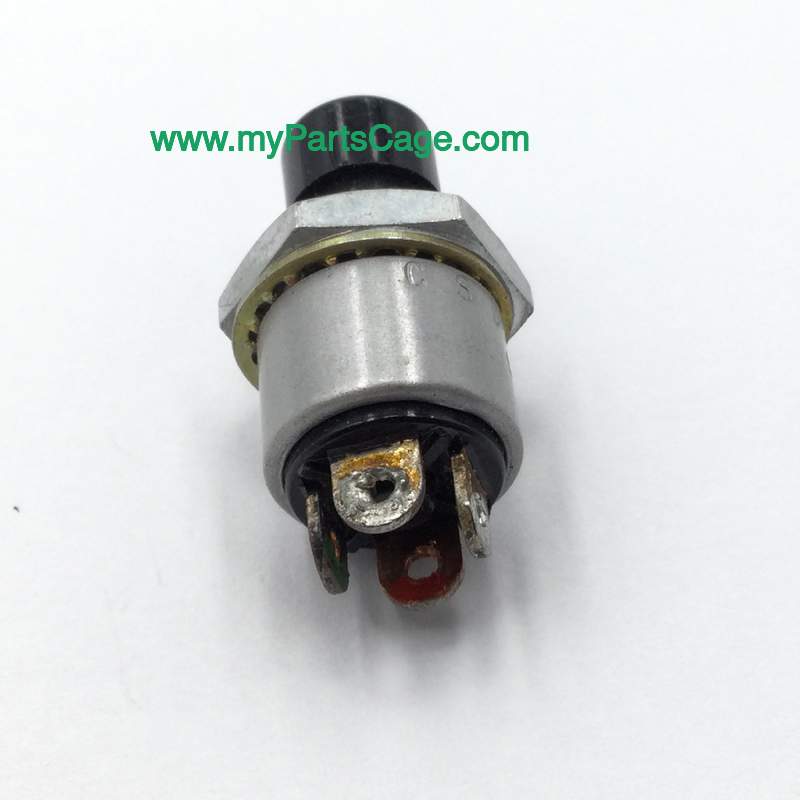

Picture of NSN 5930-00-538-1673

Datasheet

  • Product description

    Push Switch NSN 5930-00-538-1673.

  • MPN or Model

    C41008

  • Schedule B
    8536.50.9035 (Switches, push-button, rated at over 5 a, for a voltage not exceeding 1, 000 v)
  • NMF (National Motor Freight)
    061300 - Circuit Breaker/switch NOI
  • Unit Weight (Est.)
    0.1 lb
  • Thread Class
    2a
  • Body Style
    Bushing mounted
  • Overall Length
    1.406 inches
  • Overall Height
    0.625 inches
  • Overall Width
    0.625 inches
  • Body Diameter
    0.625 inches
  • Bushing Length
    0.250 inches
  • Body Length
    0.594 inches
  • Case Material
    Metal
  • Actuator Diameter
    0.312 inches
  • Actuator Height
    0.375 inches
  • Maximum Voltage Rating In Volts
    230.0 ac and 24.0 dc
  • Inclosure Type
    Fully enclosed
  • Mounting Method
    Threaded bushing
  • Thready Qty Per Inch (tpi)
    32
  • Thread Size
    0.500 inches
  • Nonpile-up Contact Arrangement
    1 pole, double throw, double break/double make, permanent jumper, one position momentary single switch unit
  • Contact Load Current Rating At Maximum Rated Voltage
    17.000 amperes inductive dc and 7.500 amperes inductive ac
  • Thread Series Designator
    Un
  • Terminal Type And Quantity
    4 tab, solder lug
More from these suppliers
Push Switch

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull; switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

Mechanic Bill explains Push Button Switch

Pricing and Availability

Get a quote for 5930-00-538-1673 push switch
Quantity:
Your Email:
Your Name:
Company Name:
Optional reference:
Phone:
NSN 5930005381673

We do not share, sell, or distribute your information to any third party.
Privacy | Terms

All major credit cards accepted as well as gov. p-cards
Manufacturer Part Numbers and Alternates
MPN manufacturer part number Registrant or Supplier
C41008 Labinal, Llc
C41008 Naval Air Warfare Center
140006-00HB Trw Assemblies And Fasteners Group
Stock Check
Availability for this item was last checked on 09/07/21. The quantities and conditions available at the time were:
  • NE: 10
  • NS: 19
